에어 리크 테스터

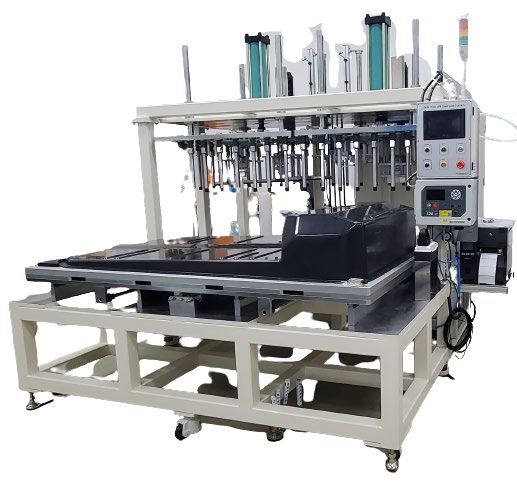

  • EV Battery Case Air Leak Test System
  • Semi-Auto or Full auto with Robot loading system
  • Hydraulics press unit & Cylinder
  • Air Leak Detector: CTS I28
  • Test Pressure: 4KPa
  • Reject Leak Rate: 10sccm
  • Cycle time: 5 min.
  • External Fast Fill function (1/2” valve)
  • Internal volume reducer
  • Bar-code Scanner & Printer
  • Data gathering by SD memory card in HMI
관리자 2023-01-06 116

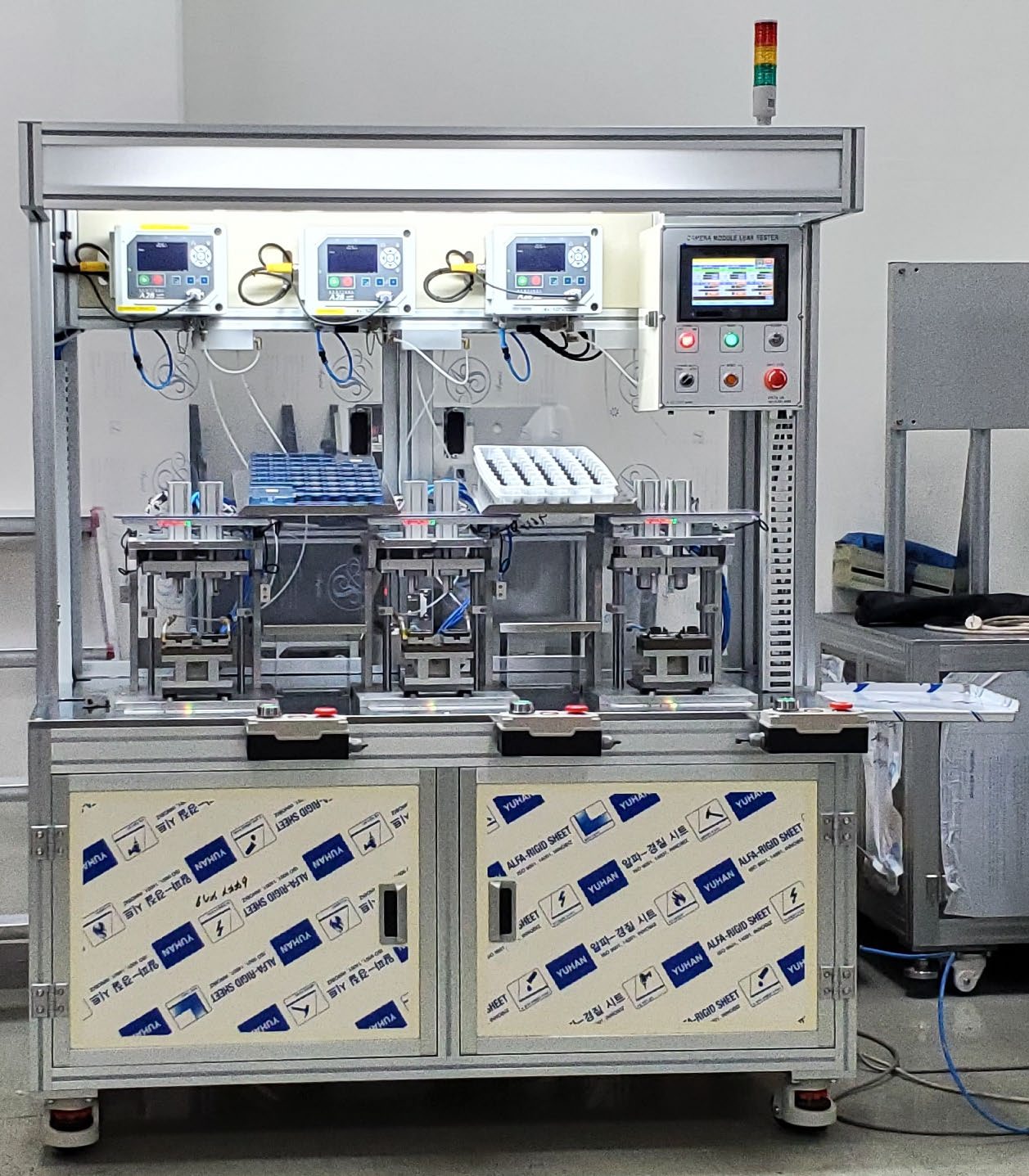

  • CameraModulehousingAirLeak Test System (3-station individual test)
  • Semi-Auto (Manual Loading & Unloading)
  • Data gathering by SD memory card in HMI
  • Air Leak Detector: CTS A28 (Differential Pressure Decay)
  • Test Pressure: 1.5 bar
  • Reject Leak Rate: 0.25sccm
  • Cycle time: 30 sec.
  • Six parts in 30 sec. (5 second a part)
  • Exchangeable test nest & sealing tool
관리자 2023-01-06 79

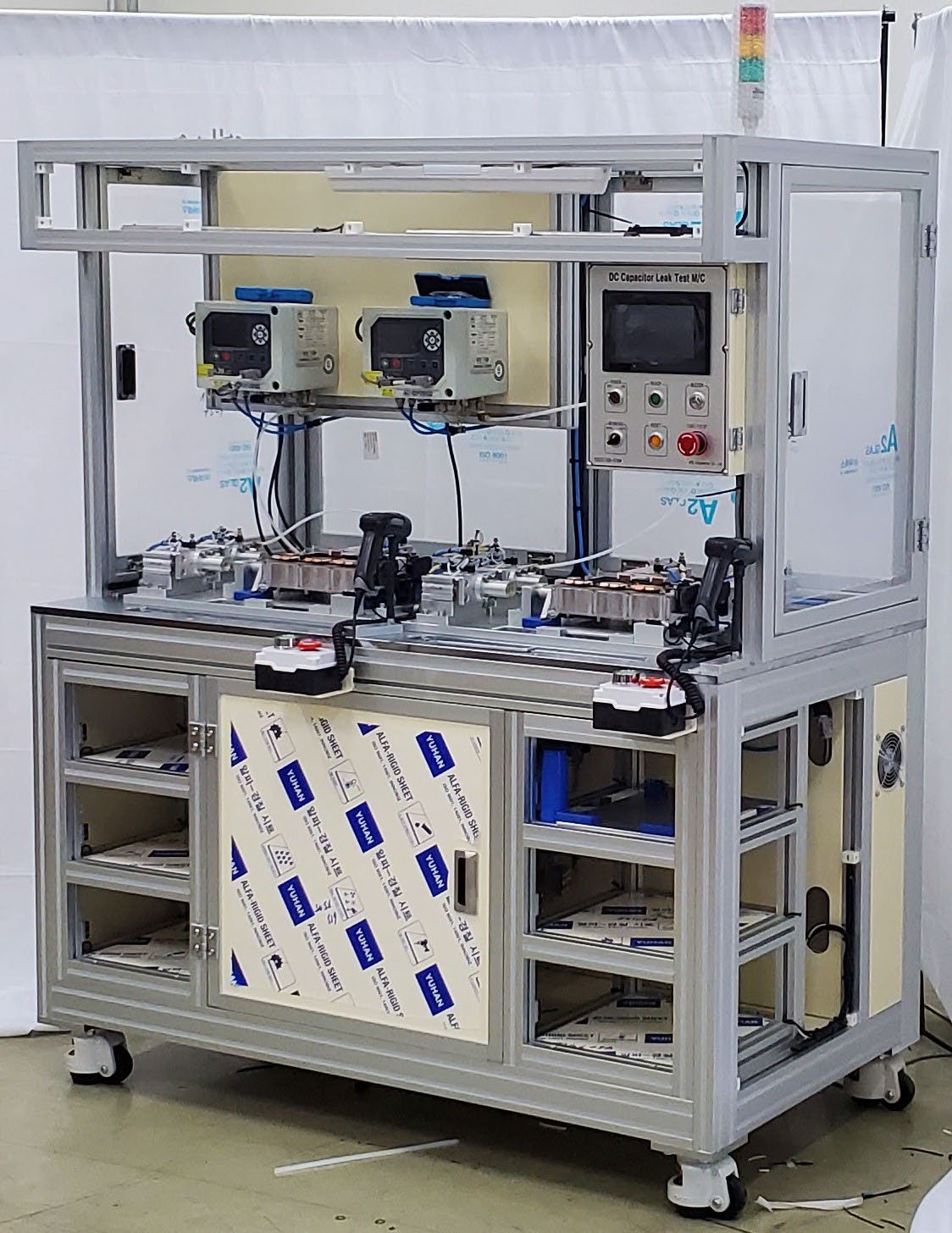

  • Two Stations-semi auto machine
  • Two parts per one cycle.
  • Data gathering by SD memory card in HMI
  • Air Leak Detector: CTS A28 (Differential Pressure Decay)
  • Leak Specification: 0.4sccmat2bar
  • Cycle time: 30 sec.
  • Manual Barcode scanner
  • NG Box –fool proof
관리자 2023-01-06 69

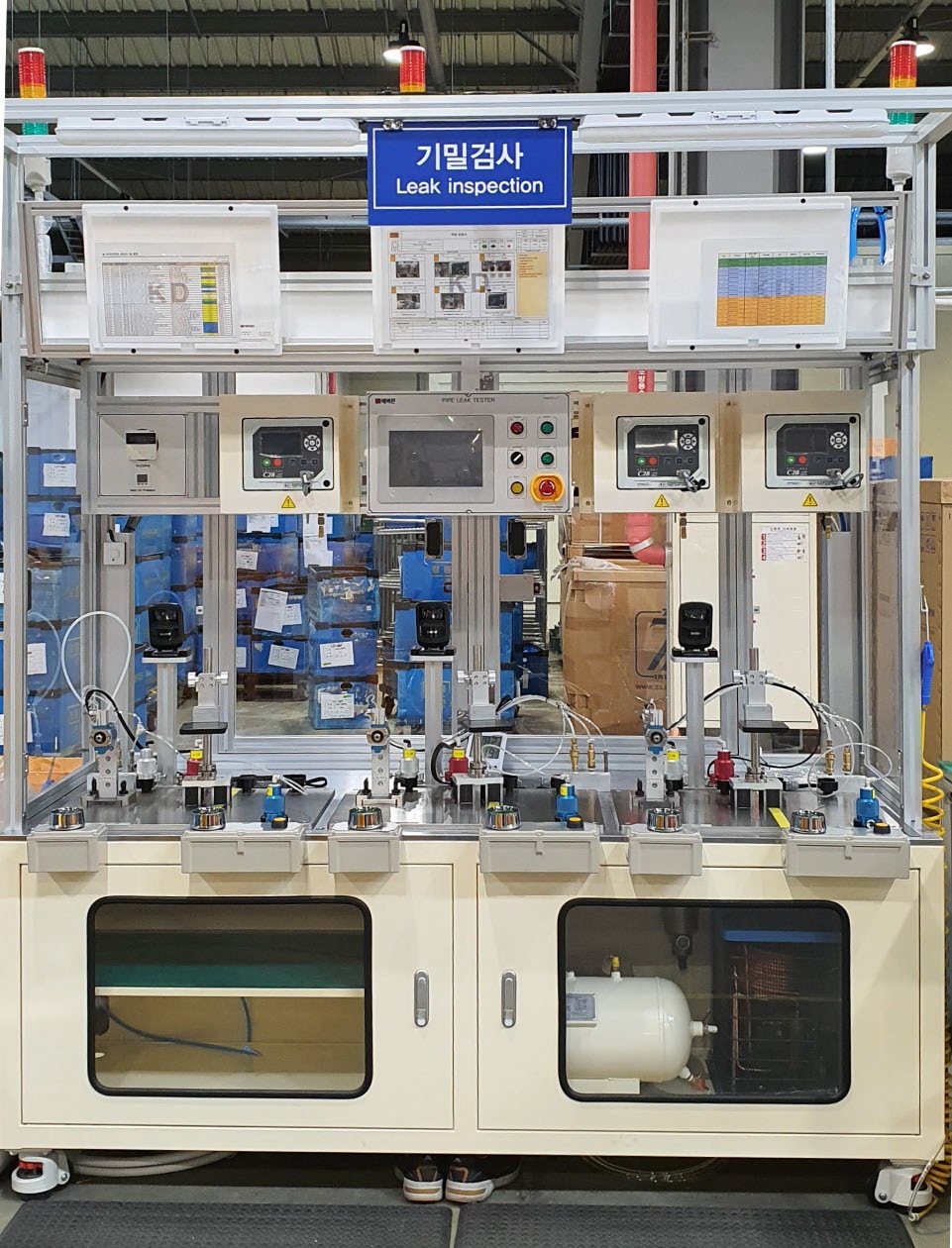

  • UV Lamp Air Leak Test Machine(7-stations simultaneous Testing)
  • Semi-Auto (Manual Loading & Unloading)
  • Data gathering by SD memory card in HMI
  • Air Leak Detector: CTS C20 (Absolute Pressure Decay)
  • Dual Test Pressure: 0.3bar & 0.05bar
  • Reject Leak Rate: 0.03bar loss for 10sec.
  • Cycle time: 20 sec.
  • Two parts by one test fixture.
관리자 2023-01-06 49

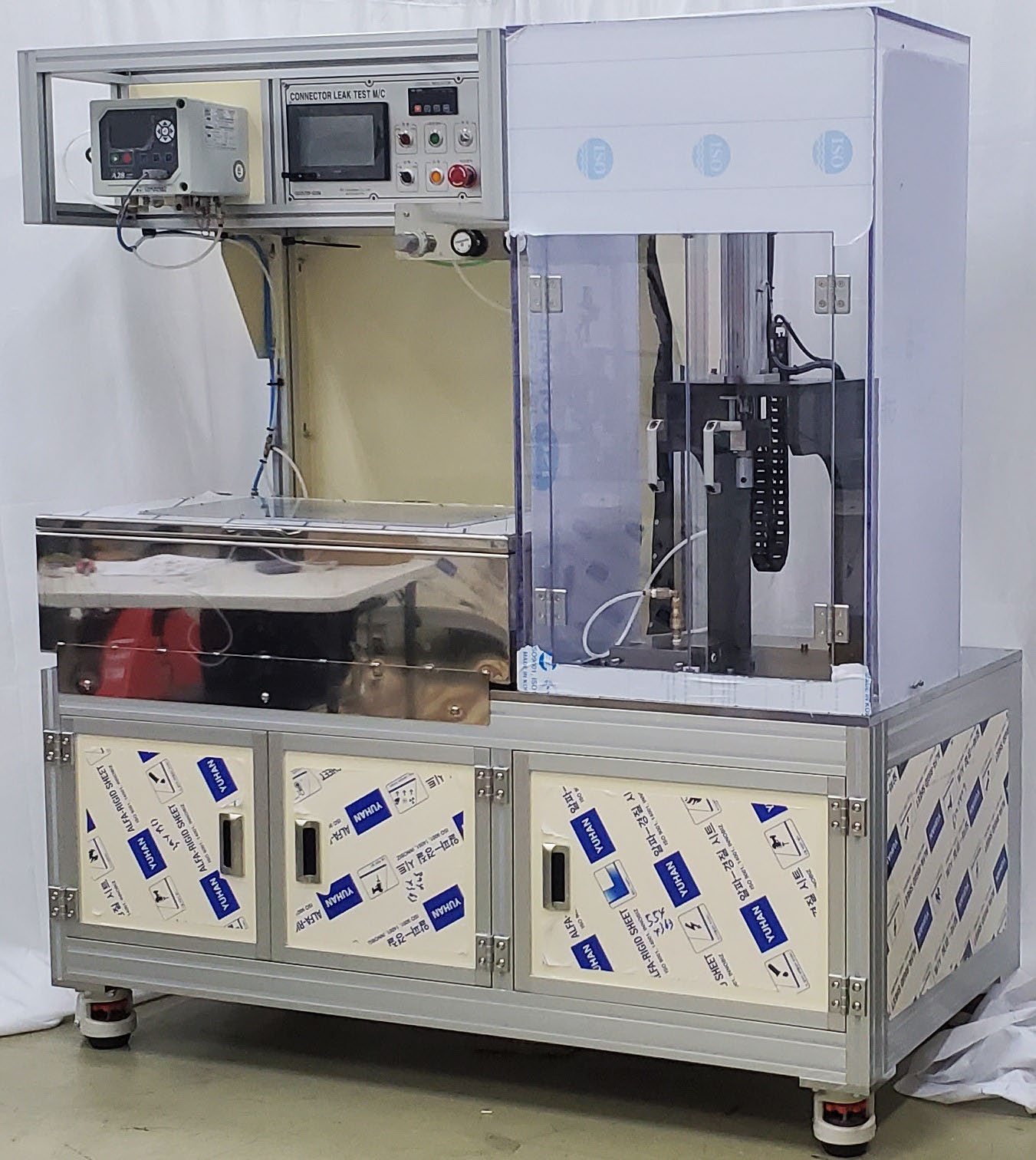

  • Laboratory Test machine.
  • Leak Testing with a load set point.
  • Data gathering by SD memory card in HMI
  • Air Leak Detector: CTS A28 (Differential Pressure Decay)
  • Loading feature during leak test
  • Up to 1000N
  • Loading speed control
  • Vacuum-high pressure-low pressure selection.
  • Vacuum to 15bar with booster and ejector controlled
  • Stainless Steel bubble test bath.
관리자 2023-01-06 58

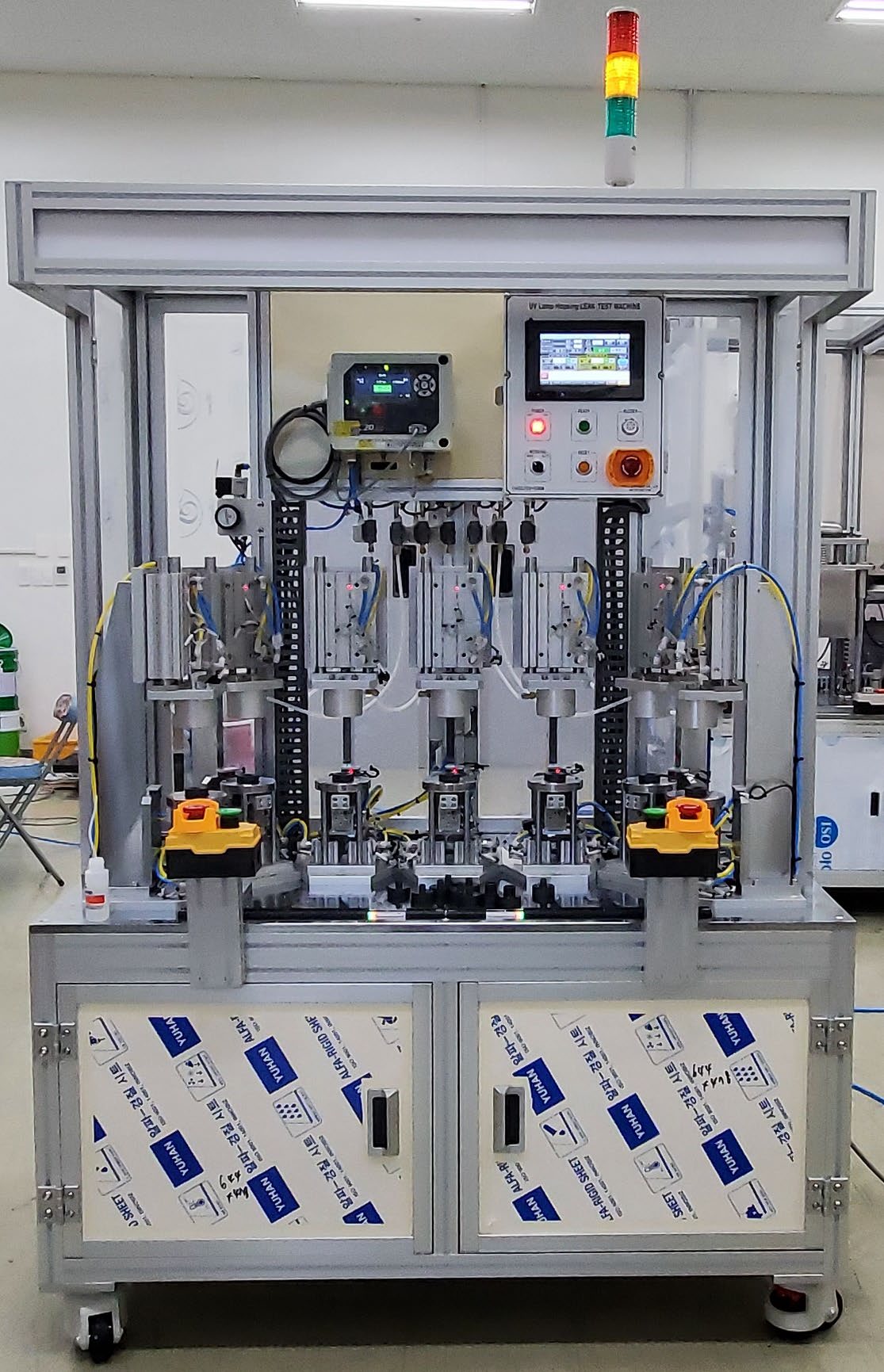

  • Boiler pipe assembly AirLeak Test (3-station individual test)
  • Semi Auto(Manual Loading & Unloading)
  • Barcode Scanning, DATAMES by PC
  • Air Leak Detector: CTS C28
  • Test Pressure: 2bar
  • Reject Leak Rate: 1.5sccm
  • Cycle time: 20sec.
  • Exchangeable test nest & sealing tool
  • 20 types of part by one machine.
관리자 2023-01-06 61

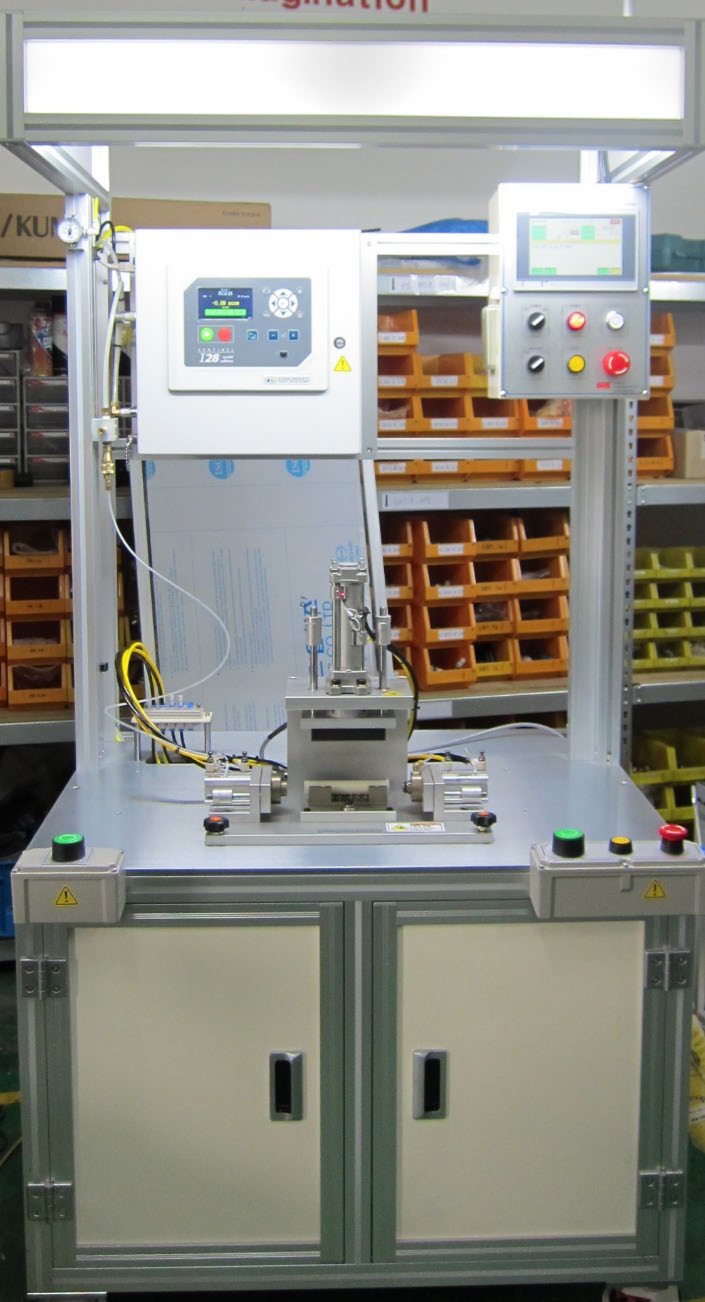

  • CCTV (IP Camera)Air Leak Test
  • Number of workers: 1
  • Manual loading & Unloading
  • Air Leak Detector: CTS C28WE
  • Test Pressure: 0.35bar
  • Cycle time: 12 sec.
관리자 2023-01-06 72

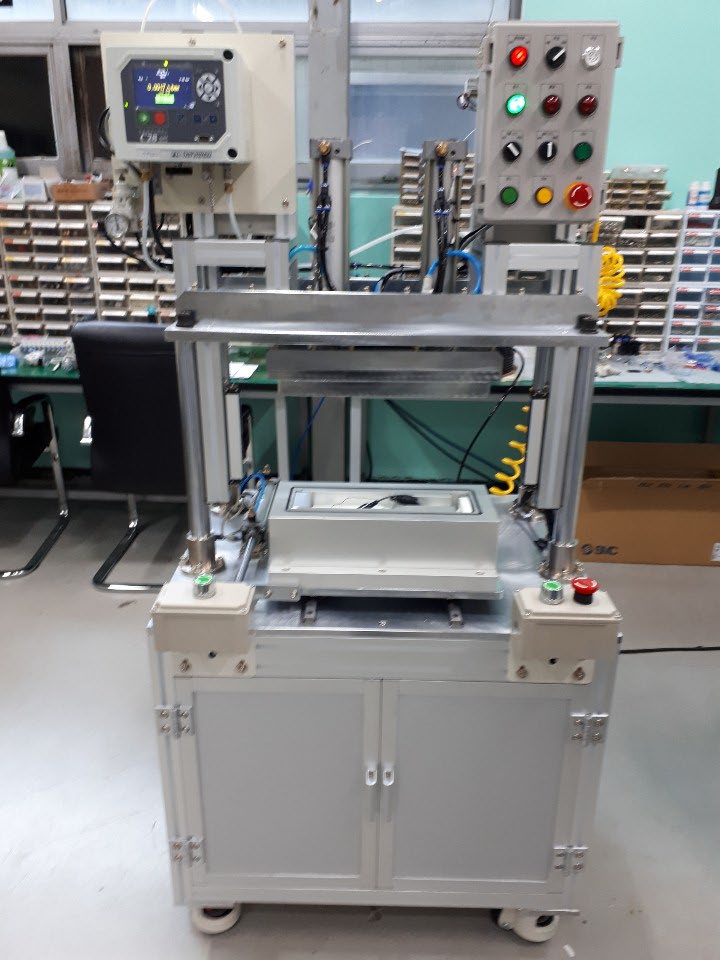

  • Coolant tube, Fin Manifold leak test
  • Number of workers: 1
  • Manual loading & Jig Change
  • Automatic Sealing
  • Air Leak Detector: CTS I28
  • Test Pressure: 30~60psig
관리자 2023-01-06 76
